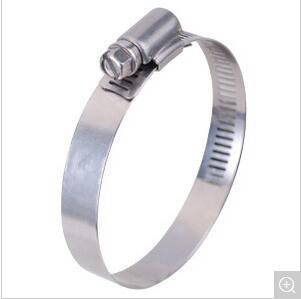

12.7mm American Type Hose Clamp
Product name : 12.7mm American Type Hose Clamp
Model No. : qf007
Price : 0.07usd/pcs
Products Category: > American type hose clamps > Bandwidth 14.2mm
12.7mm bandwidth american style perforated hose clamp supplier
1)Made of high quality stainless steel
2)Excellent wear resist
12.7mm bandwidth american style perforated hose clamp supplier
Specifications:
1)Material :400/300/200 series grade stainless steel /Carbon steel .
2)Band width :12.7mm/8mm/10mm/14.2mm
3)size:various sizes are available ,after your order
sizing and clamping range chart
SAE Sizes | min.dia.(in.) | max.dia.(in.) | min.dia.(mm) | max.dia.(mm) |
6 | 3/8 | 7/8 | 10 | 22 |
8 | 7/16 | 1 | 11 | 25 |
10 | 1/2 | 1-1/16 | 13 | 27 |
12 | 1/2 | 1-1/4 | 13 | 32 |
16 | 11/16 | 1-1/2 | 18 | 38 |
20 | 3/4 | 1-3/4 | 19 | 44 |
24 | 1 | 2 | 25 | 51 |
28 | 1-1/4 | 2-1/4 | 32 | 57 |
32 | 1-1/2 | 2-1/2 | 38 | 63 |
36 | 1-3/4 | 2-3/4 | 44 | 70 |
40 | 2 | 3 | 51 | 76 |
44 | 2-1/4 | 3-1/4 | 57 | 82 |
48 | 2-1/2 | 3-1/2 | 64 | 89 |
52 | 2-3/4 | 3-3/4 | 70 | 95 |
56 | 3 | 4 | 76 | 101 |
60 | 3-1/4 | 4-1/4 | 83 | 108 |
64 | 2-1/2 | 4-1/2 | 64 | 114 |
72 | 3 | 5 | 76 | 127 |
80 | 3-1/2 | 5-1/2 | 89 | 140 |
88 | 4 | 6 | 102 | 152 |
96 | 4-1/2 | 6-1/2 | 114 | 165 |
104 | 5 | 7 | 127 | 178 |
116 | 5-3/4 | 7-3/4 | 146 | 197 |
128 | 2-1/2 | 8-1/2 | 64 | 216 |
140 | 7-1/4 | 9-1/4 | 184 | 235 |
152 | 2 | 10 | 51 | 254 |
164 | 2 | 10-3/4 | 51 | 273 |
176 | 9-1/2 | 11-1/2 | 241 | 292 |
188 | 2 | 12-1/4 | 51 | 311 |
208 | 11-1/2 | 13-1/2 | 292 | 343 |
224 | 12-1/2 | 14-1/2 | 318 | 368 |
236 | 13-1/4 | 15-1/4 | 337 | 387 |
248 | 2 | 16 | 51 | 406 |
