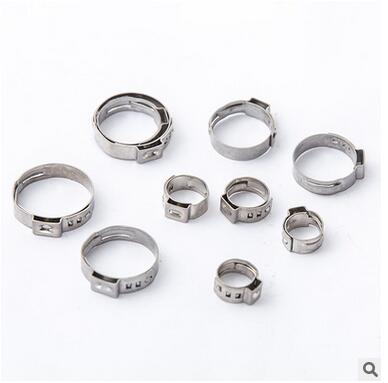

Single Ear Hose Clamps/clips
Product name : Single Ear Hose Clamps/clips
Model No. : qf0063
Price : 0.05usd/pcs
Products Category: > hose clamp > single ear hose clamp
Single Ear Hose Clamps/clips
KHxx | KHxxSS | KHFxxSS | KHLxxSS | |
Material for Band | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
Material for Housing | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
corrosion resistance | ordinary | good | better | Best |
Rated Ultimate Torque | 50in.lbs. min.(5.6Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) |
Recommended Installation Torque | 30-40in.lbs.(3.4-4.5Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) |
bandwidth(mm) | thickness of band (mm) | size(mm) | material |
5 | 0.5 | 6.0-7.0 | AISI 304ss |
0.5 | 7.0-8.7 | ||
0.5 | 7.8-9.5 | ||
0.5 | 8.8-10.5 | ||
7 | 0.6 | 9.4-11.9 | |
0.6 | 9.8-12.3 | ||
0.6 | 10.3-12.8 | ||
0.6 | 10.8-13.3 | ||
0.6 | 11.3-13.8 | ||
0.6 | 11.5-14.0 | ||
0.6 | 12.0-14.5 | ||
0.6 | 12.3-14.8 | ||
0.6 | 12.8-15.3 | ||
0.6 | 13.2-15.7 | ||
0.6 | 13.7-16.2 | ||
0.6 | 14.1-16.6 | ||
0.6 | 14.3-16.8 | ||
0.6 | 14.5-17.0 | ||
0.6 | 15.0-17.5 | ||
0.6 | 14.5-17.8 | ||
0.6 | 14.8-18.0 | ||
0.6 | 15.3-18.5 | ||
0.6 | 16.0-19.2 | ||
0.6 | 16.6-19.8 | ||
0.6 | 17.8-21.0 | ||
0.6 | 19.4-22.6 | ||
0.6 | 20.3-23.5 | ||
0.6 | 20.9-24.1 | ||
0.6 | 22.4-25.6 | ||
0.6 | 23.9-27.1 | ||
0.6 | 25.4-28.6 | ||
0.6 | 26.9-30.1 | ||
0.6 | 27.6-30.8 | ||
0.6 | 28.4-31.6 | ||
0.6 | 29.9-33.1 | ||
0.6 | 31.4-34.5 | ||
0.6 | 32.9-36.1 | ||
0.6 | 34.4-37.6 | ||
0.6 | 34.9-38.1 | ||
0.6 | 36.4-39.6 | ||
0.6 | 37.8-41.0 | ||
0.6 | 39.3-42.5 | ||
0.6 | 40.8-44.0 | ||
0.6 | 42.3-45.5 | ||
0.6 | 43.6-47.0 | ||
0.6 | 45.3-48.5 | ||
0.6 | 46.8-50.0 |
