Home > Products > hose clamp > double wire hose clamp > Wire Formed Spring Pipe Clamps Double Wire Hose Clamp, Hose Clip

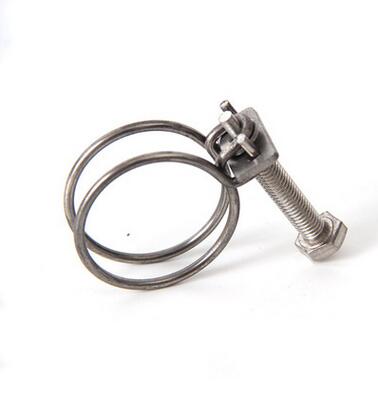

Wire Formed Spring Pipe Clamps Double Wire Hose Clamp, Hose Clip
Product name : Wire Formed Spring Pipe Clamps Double Wire Hose Clamp, Hose Clip
Model No. : qf0060
Price : 0.05usd/pcs
Products Category: > hose clamp > double wire hose clamp
Material:
Main material: carbon spring steel, stainless steel spring, etc.
1 | Size | Regulating range | The Size Of The Screw | Wire Diameter |
2 | 14 | 11-14 | M5 x 30 | 1.2 |
3 | 16 | 12-16 | M5 x 30 | 1.2 |
4 | 19 | 15-19 | M5 x 30 | 1.4 |
5 | 22 | 18-22 | M5 x 30 | 1.4 |
6 | 25 | 20-25 | M5 x 30 | 1.5 |
7 | 28 | 24-29 | M6x 40 | 1.5 |
8 | 32 | 28-32 | M6x 40 | 1.6 |
9 | 38 | 34-38 | M6x 40 | 1.6 |
10 | 44 | 38-44 | M6x 40 | 2.0 |
11 | 51 | 40-51 | M6x 50 | 2.0 |
12 | 57 | 50-57 | M6x 50 | 20 |
13 | 60 | 55-60 | M6x 60 | 2.0 |
14 | 64 | 60-64 | M6x 60 | 2.0 |
15 | 70 | 65-70 | M6x 70 | 2.0 |
16 | 89 | 80-89 | M6x 70 | 2.2 |
17 | 92 | 85-92 | M6x 70 | 2.2 |
18 | 100 | 90-100 | M6x 70 | 2.5 |
19 | 110 | 100-110 | M6x 80 | 2.5 |
20 | 120 | 110-120 | M6x 80 | 2.5 |
The size of the spring hose clamps.
If you custom the hose clamp,please provide the information of as following.
1、 The Wire Diameter.
2、The Inner Diameter D
3、The length of the screw.
4、The Mterial of the clamp.
5、The surface treatment.
