Xianju Qingfang Automobile Parts Co., Ltd.

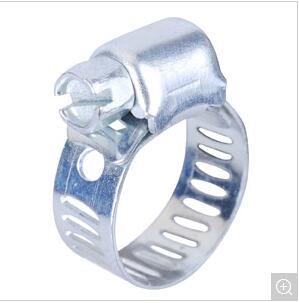

8mm Bandwidth American Type Hose Clamp
Product name : 8mm Bandwidth American Type Hose Clamp
Model No. : qf003
Price : 0.02usd/pcs
Products Category: > American type hose clamps > bandwidth 8MM
Specifications
8mm bandwidth perforated style worm drive hose clamp
1) Made of high quality stainless steel
2) Excellent wear resistance
8mm bandwidth perforated style worm drive hose clamp
Specifications:
1)Screw:hex-head . Carbon steel or 400/200/300 grade stainless steel .
2)Band: band width 8mm/12.7mm/14.2mm .
3)Housing:Carbon steel or 400/200/300 grade stainless steel .
clamping size range chart
sae sizes | min. dia.(in.) | max.dia.(in.) | min.dia.(mm) | max.dia.(mm) |
| 04 | 1/4 | 5/8 | 6 | 16 |
| 05 | 1/4 | 11/16 | 7 | 17 |
| 06 | 5/16 | 7/8 | 8 | 22 |
| 08 | 3/8 | 1 | 10 | 25 |
| 10 | 3/8 | 1-1/16 | 10 | 27 |
| 12 | 1/2 | 1-1/4 | 13 | 32 |
| 16 | 1/2 | 1-1/2 | 13 | 38 |
| 20 | 3/4 | 1-3/4 | 19 | 44 |
| 24 | 1 | 2 | 26 | 51 |
| 28 | 1-1/4 | 2-1/4 | 32 | 57 |
| 30 | 1-3/8 | 2-3/8 | 35 | 60 |
| 32 | 1-1/2 | 2-1/2 | 38 | 63 |
| 36 | 1-3/4 | 2-3/4 | 45 | 70 |
| 44 | 2-1/4 | 3-1/4 | 57 | 82 |
| 48 | 2-1/2 | 3-1/2 | 64 | 89 |
