Xianju Qingfang Automobile Parts Co., Ltd.

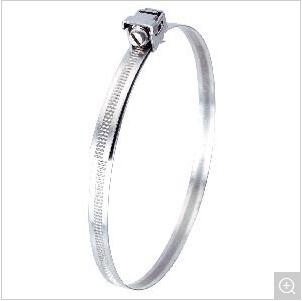

Quick Release Hose Clamp
Product name : Quick Release Hose Clamp
Model No. : qf0021
Price : 0.22usd/pcs
Products Category: > Quick Release Clamp > Quick Release Clamp
Material Specifications
Screw: Carbon steel or 400 / 200 / 300 grade stainless steel.
Band: Carbon steel or 400 / 200 / 300 grade stainless steel...
Housing: Carbon steel or 400 / 200 / 300 grade stainless steel.
Screw: Carbon steel or 400 / 200 / 300 grade stainless steel.
Band: Carbon steel or 400 / 200 / 300 grade stainless steel...
Housing: Carbon steel or 400 / 200 / 300 grade stainless steel.
| Code | Min. Dia. (in.) | Max. Dia. (in.) | Min. Dia. (mm) | Max. Dia. (mm) |
| 6 | 3/8 | 7/8 | 10 | 22 |
| 8 | 7/16 | 1 | 11 | 25 |
| 10 | 1/2 | 1 1/16 | 13 | 27 |
| 12 | 1/2 | 1 1/4 | 13 | 32 |
| 16 | 11/16 | 1 1/2 | 18 | 38 |
| 20 | 3/4 | 1 3/4 | 19 | 44 |
| 24 | 1 | 2 | 25 | 51 |
| 28 | 1 1/4 | 2 1/4 | 32 | 57 |
| 32 | 1 1/2 | 2 1/2 | 38 | 63 |
| 36 | 1 3/4 | 2 3/4 | 44 | 70 |
| 40 | 2 | 3 | 51 | 76 |
| 44 | 2 1/4 | 3 1/4 | 57 | 82 |
| 48 | 2 1/2 | 3 1/2 | 64 | 89 |
| 52 | 2 3/4 | 3 3/4 | 70 | 95 |
| 56 | 3 | 4 | 76 | 101 |
| 60 | 3 1/4 | 4 1/4 | 83 | 108 |
| 64 | 2 1/2 | 4 1/2 | 64 | 114 |
| 72 | 3 | 5 | 76 | 127 |
| 80 | 3 1/2 | 5 1/2 | 89 | 140 |
| 88 | 4 | 6 | 102 | 152 |
| 96 | 4 1/2 | 6 1/2 | 114 | 165 |
| 104 | 5 | 7 | 127 | 178 |
