Xianju Qingfang Automobile Parts Co., Ltd.

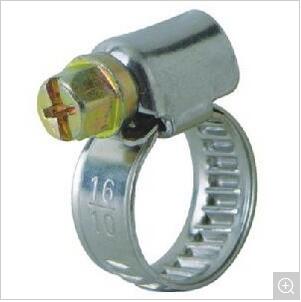

9mm Bandwidth Germany Type Hose Clamp
Product name : 9mm Bandwidth Germany Type Hose Clamp
Model No. : qf0013
Price : 0.089
Products Category: > Germany type hose clamp > 9mm Bandwidth
9MM Germany type carbon steel hose clamp
9MM Germany type stainless steel hose clamp
Material Specifications
Screw: 7 mm hex-head. Carbon steel or 400 / 200 / 300 grade stainless steel.
Band: 9mm band width. Non-perforated / solid. Carbon steel or 400 / 200 / 300 grade stainless steel...
Housing: Carbon steel or 400 / 200 / 300 grade stainless steel.
9MM Germany type stainless steel hose clamp
Material Specifications
Screw: 7 mm hex-head. Carbon steel or 400 / 200 / 300 grade stainless steel.
Band: 9mm band width. Non-perforated / solid. Carbon steel or 400 / 200 / 300 grade stainless steel...
Housing: Carbon steel or 400 / 200 / 300 grade stainless steel.
| Part No. | Dia. Min. - Max. (mm) | Dia. Min. - Max.(in.) | Torque Performance Installation(in.-lbs.) | Torque Performance Installation (Nm) | Torque Performance Ultimate (in.-lbs.) | Torque Performance Ultimate (Nm) |
| 1 | 8-12 | 5/16 - 15/32 | 18.0 | 2.0 | 35 | 4.0 |
| 2 | 8-16 | 5/16 - 5/8 | 18.0 | 2.0 | 35 | 4.0 |
| 3 | 12-20 | 15/32 - 25/32 | 26.0 | 3.0 | 40 | 4.5 |
| 4 | 12-22 | 15/32 - 7/8 | 26.0 | 3.0 | 40 | 4.5 |
| 5 | 16-27 | 5/8 - 1 1/16 | 26.0 | 3.0 | 40 | 4.5 |
| 6 | 20-32 | 25/32 - 1 1/4 | 26.0 | 3.0 | 40 | 4.5 |
| 7 | 25-40 | 1 - 1 9/16 | 26.0 | 3.0 | 40 | 4.5 |
| 8 | 30-45 | 1 3/16 - 1 3/4 | 26.0 | 3.0 | 40 | 4.5 |
| 9 | 32-50 | 1 1/4 - 1 31/32 | 26.0 | 3.0 | 40 | 4.5 |
| 10 | 40-60 | 1 9/16 - 2 3/8 | 26.0 | 3.0 | 40 | 4.5 |
| 11 | 50-70 | 1 31/32 - 2 3/4 | 26.0 | 3.0 | 40 | 4.5 |
| 12 | 60-80 | 2 3/8 - 3 1/8 | 26.0 | 3.0 | 40 | 4.5 |
| 13 | 70-90 | 2 3/4 - 3 1/2 | 26.0 | 3.0 | 40 | 4.5 |
| 14 | 80-100 | 3 1/8 - 3 15/16 | 26.0 | 3.0 | 40 | 4.5 |
| 15 | 90-110 | 3 1/2 - 4 5/16 | 26.0 | 3.0 | 40 | 4.5 |
| 16 | 100-120 | 3 5/16 -4 23/32 | 26.0 | 3.0 | 40 | 4.5 |
| 17 | 110-130 | 4 5/16 - 5 1/8 | 26.0 | 3.0 | 40 | 4.5 |
| 18 | 120-140 | 4 23/32 - 5 1/2 | 26.0 | 3.0 | 40 | 4.5 |
| 19 | 130-150 | 5 1/8 - 5 29/32 | 26.0 | 3.0 | 40 | 4.5 |
| 20 | 140-160 | 5 1/2 - 6 5/16 | 26.0 | 3.0 | 40 | 4.5 |
